Vesta Steel Siding Plank HD3 Woodgrain 5"x8' 15/carton
*This is a special order product- subject to return restrictions. Shipping and return policy Vesta Steel Siding Plank HD3 Woodgrain 5"x8' 15/carton
Quality Edge's Vesta Steel Siding is a durable and beautiful solution with a uniquely designed HD3 Woodgrain plank profile. It is made of steel at its core, is protected with a Kynar 500 coating and a CarbonTech90 zinc layer which adds an additional anticorrosive barrier. The HD3 Wood grain planks are very versatile. They are designed for both horizontal and vertical siding, they can be installed as soffit or used for porch ceiling applications.

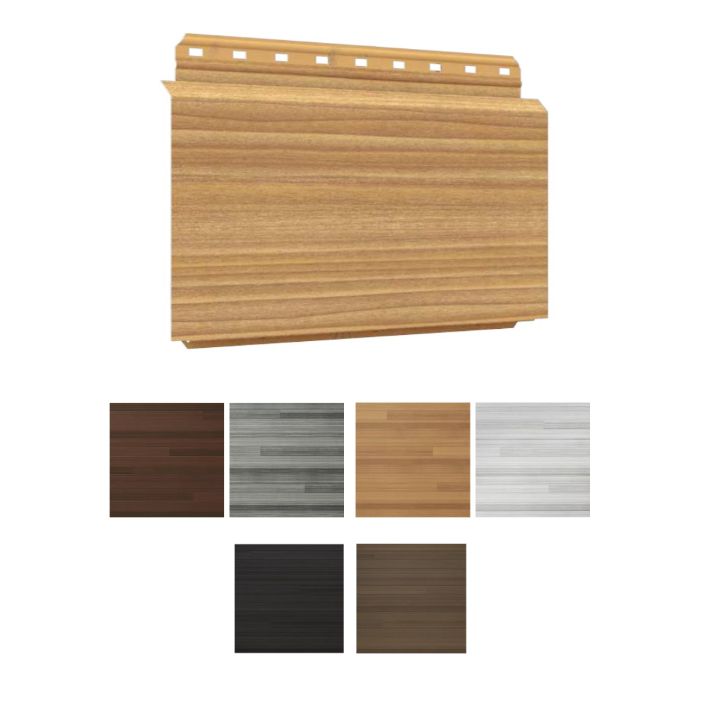

Vesta's Steel Siding Planks are available in the following colors:
- Autumn Thistle
- Driftwood
- Gilded Grain
- Sand Dollar
- Dark Espresso
- Aged Walnut
1 carton of 15 pieces = 50 square feet
2 cartons of 15 pieces = 1 square/100 square feet
Description
Vesta Steel Siding Plank HD3 Woodgrain 5"x8' 15/carton
- Dimensions= Width: 5” Length: 8’

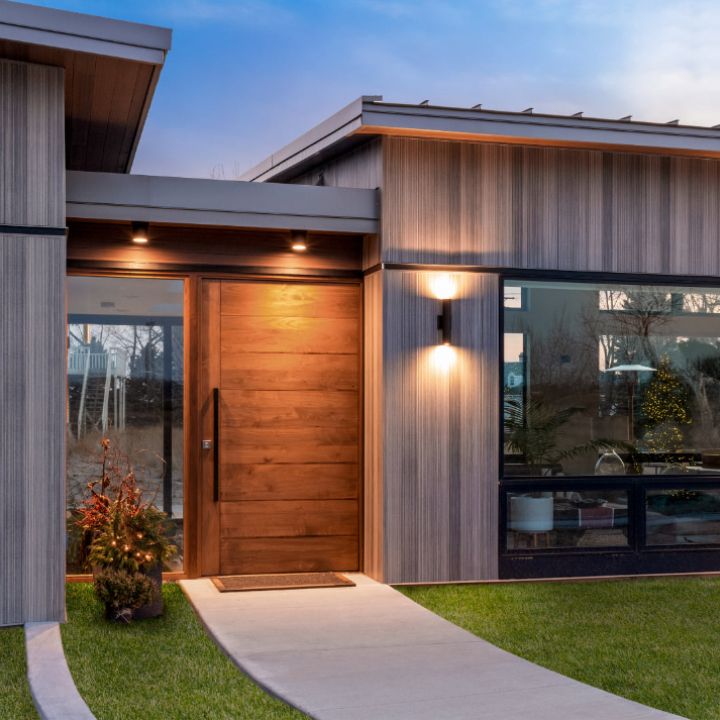

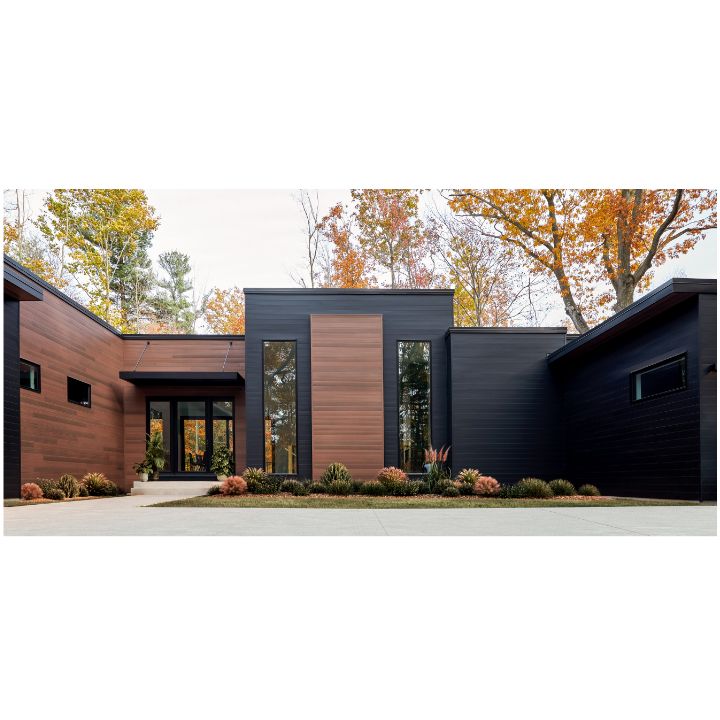

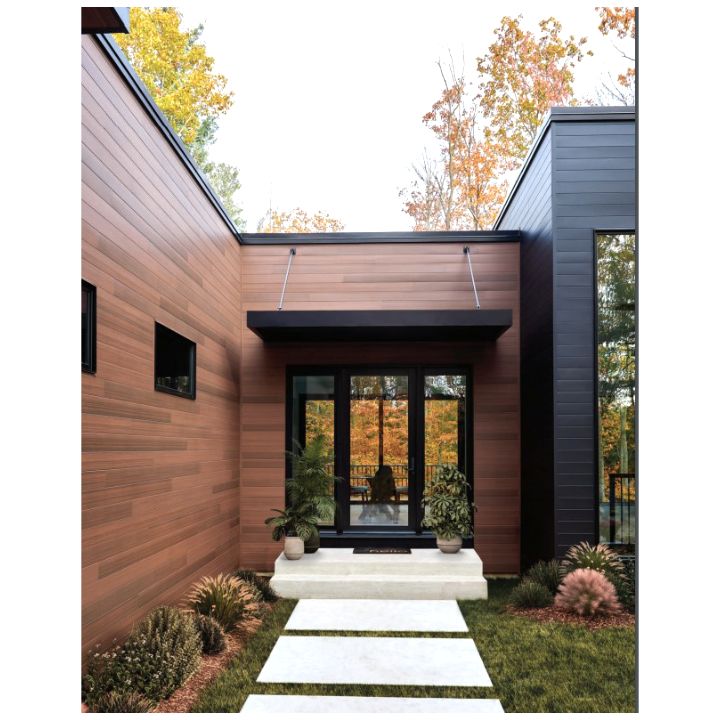

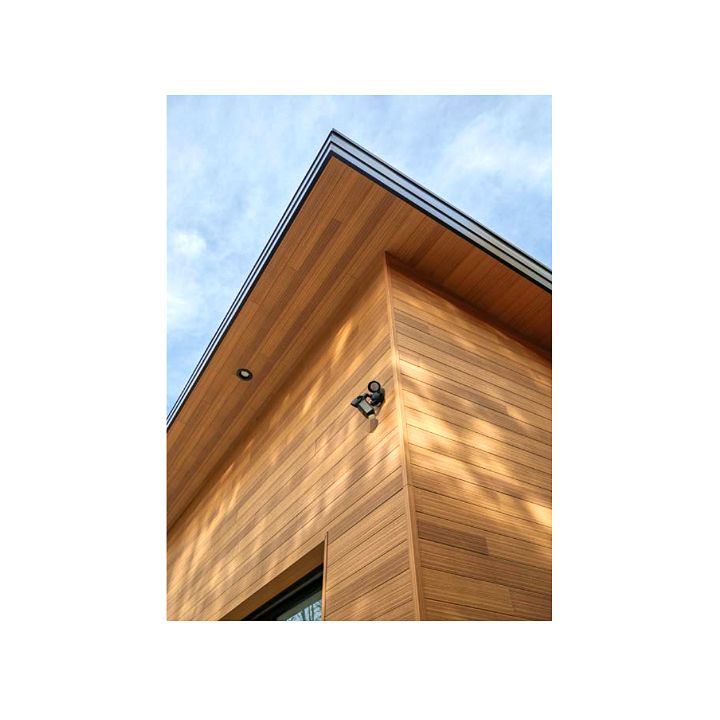

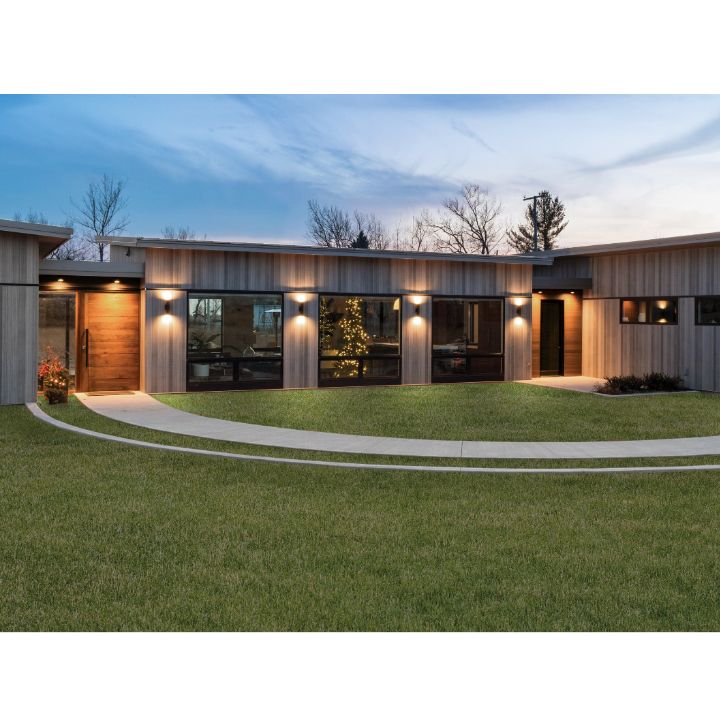

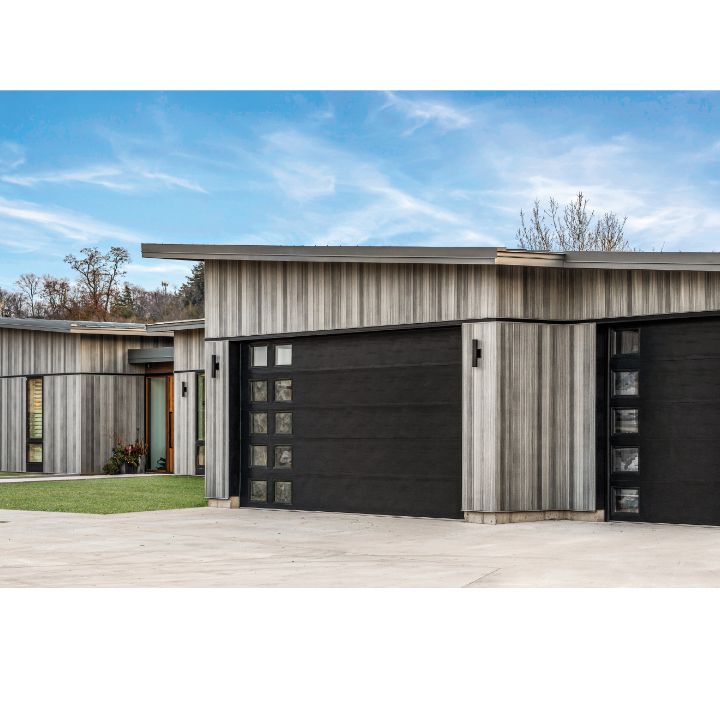

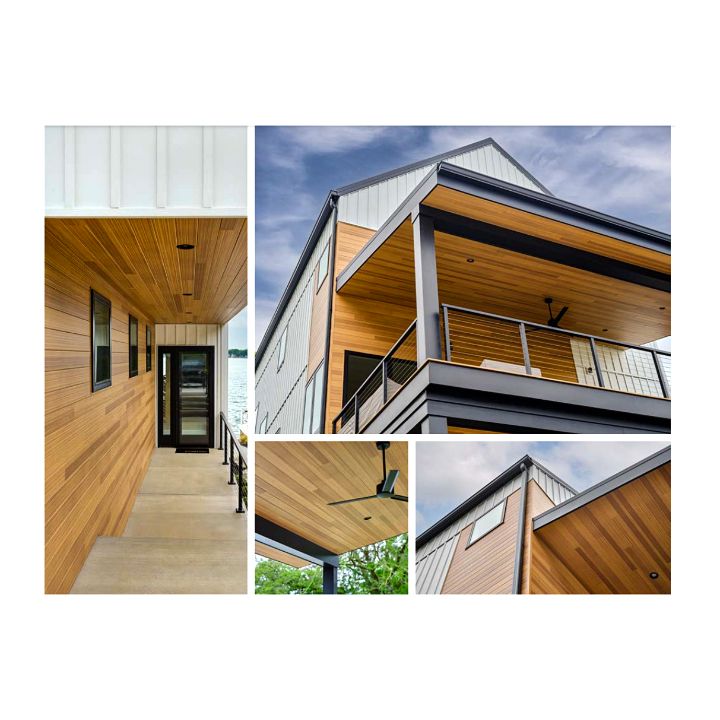

- Applications= Siding, Soffit, Porch ceiling, Horizontal and Vertical
- Quantity = 15 pieces per carton
- Thickness= 0.020" steel plank panels - All other accessories= 0.016"
- NFA (Net Free Area)= 11.4 per panel

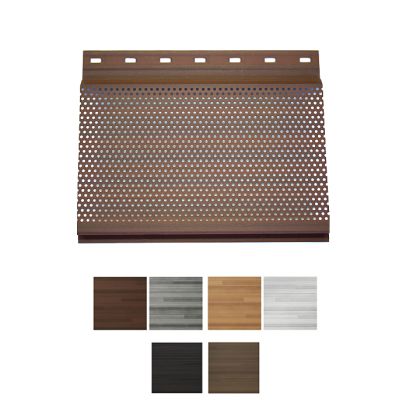

- Construction= Perforated Plank Panel
- Paint= Kynar 500®
- Material= Steel (3105 type Galvanized Commercial Steel) and CarbonTech90
- Recyclability= 100%
- Fire Rating= ASTM E84 -18b Class A Rating
- Impact Resistance Rating= UL2218 Class 4 Rating
- VOC-free
- Lead-free
- Lifetime Limited Warranty
Patents:
- US= 10,508,455 and 10,760,282
- UK= 2,588,713
- CA= Patent Pending
CarbonTech90= Provides a physical and cathodic protection, preventing moisture and corrosion from having the opportunity to affect the steel core. This galvanization process applies an anticorrosive zinc barrier.
Kynar 500®= is a 70% PVDF paint system that creates a thick film barrier which provides excellent resistance against wear, fade and chalking
HD3 = high-definition, tri-color paint. It is Quality Edge’s patented application that captures light, medium, and dark woodgrain details, creating a multidimensional and naturally accurate look that's engineered to maintain its color for a lifetime.
