AFCO Rail Installation Tool

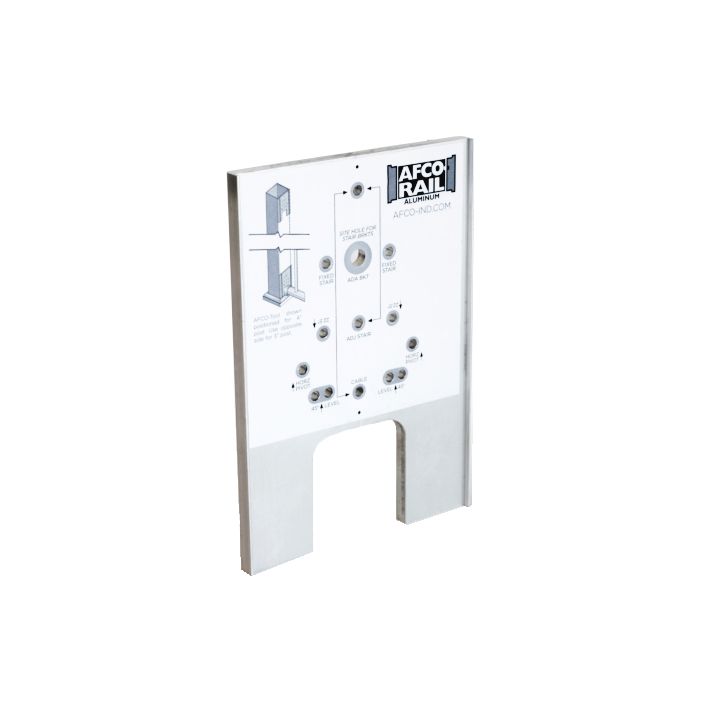

The Afco rail tool is designed to provide consistent bracket placement and is a time-saving asset that all installers should have. The tool is designed with fins on each side to keep placement consistent. Simply align your tool to the post and pre-drill perfectly positioned holes for the rail brackets.

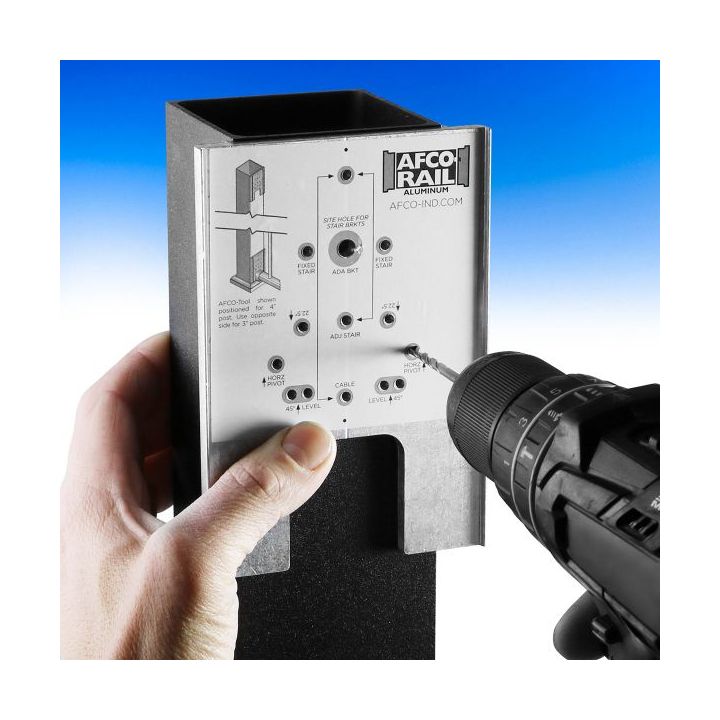

Predrill for your Aluminum AFCO-Rail Bracket configurations by overlapping the edges of the 3” or 4” Post and using a 5/32” drill bit (unless otherwise noted). The AFCO-TOOL will center your Brackets across the face of the Post. Your Level Top Rail Bracket configurations can be positioned to just the right height by aligning one edge of the
AFCO-TOOL with the top of the Aluminum AFCO-Rail Post. For your Stair Rail Brackets, simply line up your reference mark from the Rail Kit instructions in the Site Hole and drill for either the Fixed or Adjustable Stair Rail Brackets. You can even use the AFCO-TOOL to space the cable runs for your Series 175 Cable Rail.
