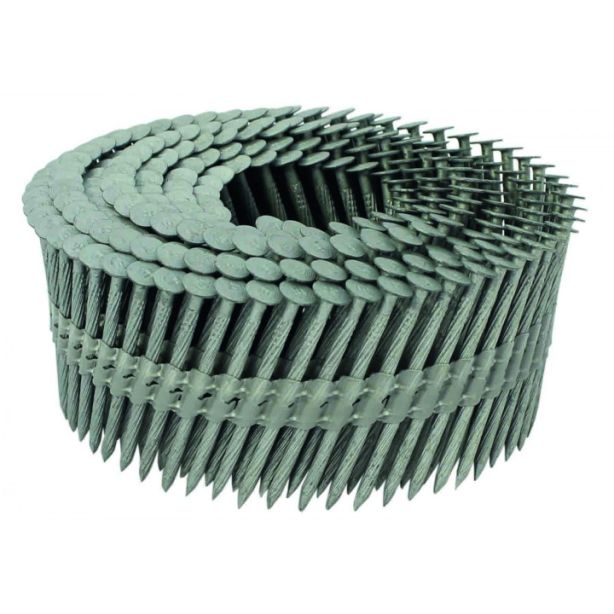

ET&F Panelfast AGS-100 Coil Nails Knurled Pin 1-1/2" Case 3000

Out of Stock
SKU
NCFCE153K
$201.01

ET&F Panelfast AGS-100 Coil Nails Knurled Pin 1-1/2" Case 3000

The nominal 5/16 head of the PANELFAST AGS-100 series pin is perfect for attaching plywood, oriented strand board (OBS), exterior gypsum sheathing, and fiber cement boards to steel framing 68mil (14ga) and lighter. Designed for use with the Model 510 tool (available separately), the ballistic point and knurled shank combine to produce maximum holding strength. Like all ET&F .100 pins, these fasteners have Aericote 1000 coating, which provides 1000 hour salt spray corrosion protection.


See "Related Products" below for more options.

ET&F Panelfast AGS-100 Coil Nails Knurled Pin 1-1/2" Case 3000

For use with the Panelfast Model 510 Nailer, these high carbon heat-treated pins drive effortlessly through plywood, strand board, exterior gypsum sheathing, and fiber cement boards.

See ICC Report ESR-2398 for design values for attaching gypsum sheathing, DensGlass Gold and Fiberock to cold formed steel.

Pin Characteristics

Collation Type plastic rope coil
Head Diameter 5/16 (8 mm)
Nail Diameter
.100"
2.54 mm
Length
1 1/2", 2", 2-1/2"
38 mm
Finish Aericote 1000
Material high carbon steel, heat treated
Shank Types knurled
Coil Capacity 250 pins
Tools PANELFAST MODEL 510
Technical Reports ESR-1777, ESR-2290, ESR-2398, IAPMO ER-335
