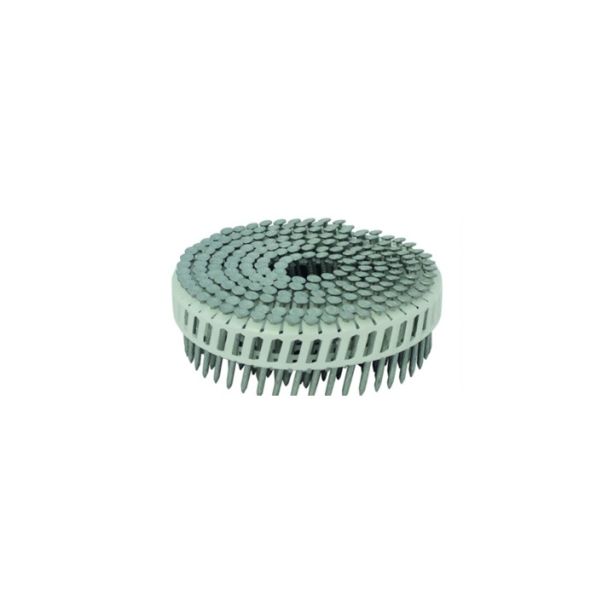

ET&F AKN1000100HA Sheet Plastic Collated Pins 1" 2000ct

Special Order
SKU
NCAKN1000100HA
$145.00

*This is a special order product- subject to return restrictions. Shipping and return policy

ET&F AKN1000100HA Sheet Plastic Collated Pins 1" 2000ct

ET&F's STEEL FRAMING PINS AKN-1000 series pins are designed especially for the ROCKFAST E45 tool to attach plywood, oriented strand board (OSB), and fiber cement siding and soffit to cold-formed steel from 97 mils (12 GA.) to 27 mils (22 GA.). These pins are finished with Aericote 1000 coating which provides ten times the corrosion protection of electroplated zinc. When driven, the fastener separates completely from the sheet plastic collation leaving a clean fastening, especially important when face nailing siding. Refer to IAPMO UES ER-335 for design values for horizontal diaphragm and shear wall construction. See ICC Reports ESR-2290 and ESR-1844 for design values for use face nailing James Hardie fiber cement siding. See ICC Report ESR-2273 for design values for use fastening James Hardie fiber cement soffit.


See "Related Products" below for more options.

ET&F AKN1000100HA Sheet Plastic Collated Pins 1" 2000ct

PIN CHARACTERISTICS

Collation Type plastic sheet coil
Head Diameter 0.300" (7.6 mm)
Nail Diameter
.100"
2.54 mm
Length
1 1/2", 2", 2-1/2"

Finish Aericote® 1000
Material high carbon steel, heat treated
Nail Head Full Round Head
Shank Types knurled
Coil Capacity 250 pins
Tools E45
Standard / Codes ESR-1844, ESR-2273, ESR-2290, IAPMO ER-335

PACKING INFORMATION

Quantity per Case 2,000 (AKN-100-0250HA 2,000)
