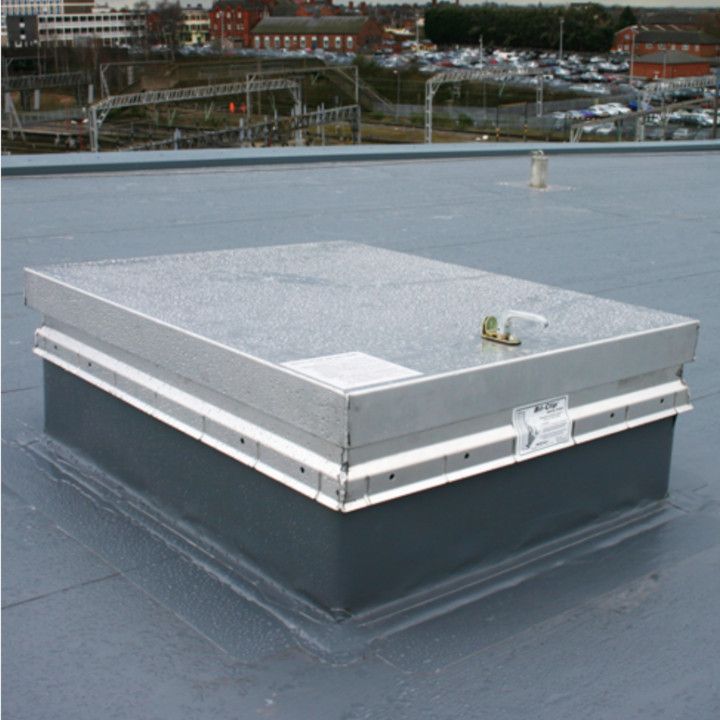

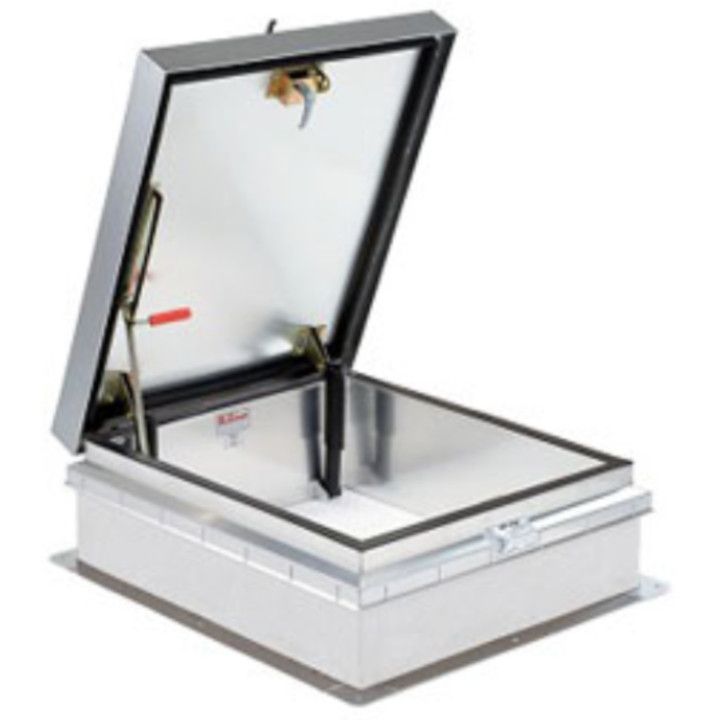

Bilco S-50TB Thermally Broken Aluminum Roof Hatch 36"x30"

Standard Features and Benefits

• Thermally broken cover and curb reduces heat transfer between interior and exterior surfaces to resist harmful condensation
• Ozone-friendly polyisocyanurate insulation (R-20+) provides superior energy efficiency
• Special EPDM gasketing with enhanced weather and wind resistance
• Meets LEED standards for recycled content
• High solar reflective index (SRI)

Guide Specifications

• Material: Cover and frame are 11 gauge (2.3 mm) aluminum.
• Curb: 12" (305 mm) in height with integral capflashing, 3" (75 mm) polyisocyanurate insulation (R Value of 20+), fully welded at corners, and 5-1/2" (114 mm) mounting flange with 7/16" holes (11 mm) provided for securing frame to the roof deck.
• Gasket: Extruded EPDM rubber gasket permanently adhered to cover.
• Hinges: Heavy-duty pintle hinges with 3/8" (9 mm) Type 316 stainless steel hinge pins.
• Latch: Slam latch with interior and exterior turn handles and padlock hasps.

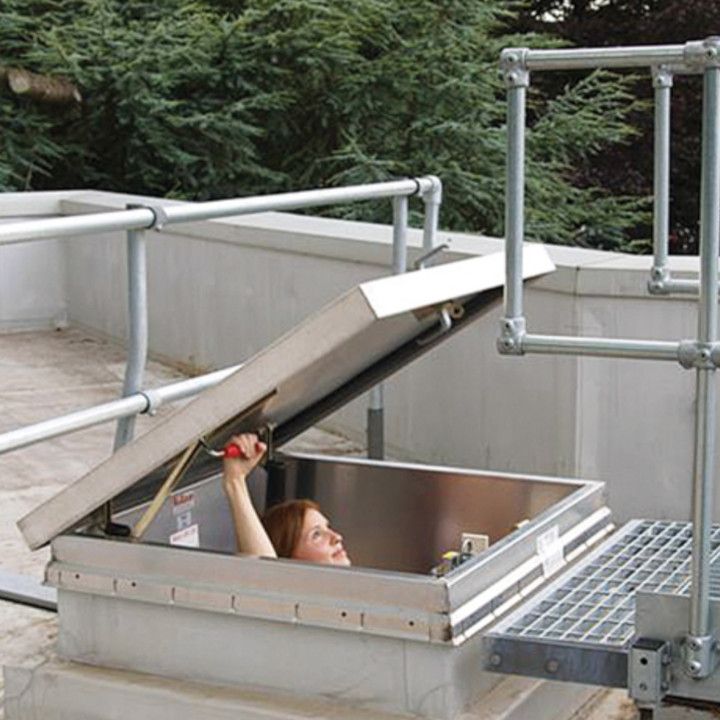

• Lift Assistance: Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with grip handle release.
• Finish: Mill finish aluminum
• Hardware: Engineered composite compression spring tubes and steel compression springs packed in grease. Type 316 stainless steel hinges. All other hardware is zinc plated/chromate sealed.
